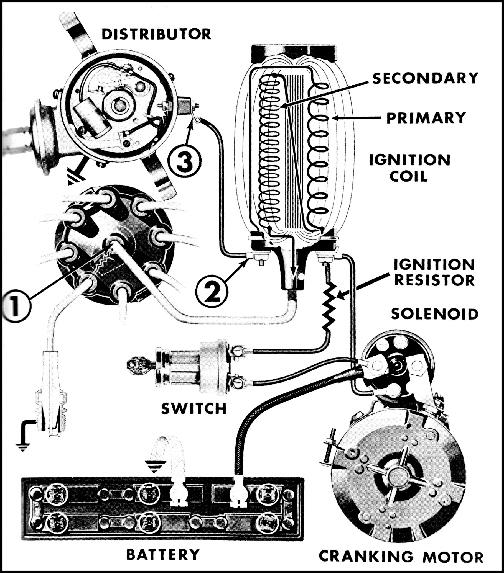

'53 Buick R/M Ignition System


Personal Restoration Book
















Before buying a car, I always buy as much relevant literature as possible.  This includes owners, motors, body and parts manuals and color chips.  I also search for drive reports, service bulletins and factory updates.  Much of the above is available in print and on CDs from vintage book stores and online.

        One of the reasons for putting together my library, was I had gotten tired of buying useless parts that were supposed to work and didnt; parts that will end up on eBay one day because I didnt have all the correct information before buying them.  Ultimately, it is my responsibility to know exactly what I need, and if one part really does fit allapplications.  I am always skeptical when someone tells me dont worry about itI know what you need. I remember being told that when I bought a set of classic-styled radiator hose clamps for my 48 Packard Custom 8.  When I got them, they looked great!  But they didnt fitthey were too small.  Belatedly, I checked my parts book, which listed the correct size.  I had wasted time and money by not looking them up first  In 40+ years of restoring, one lesson I have learned is DO YOUR OWN RESEARCH!

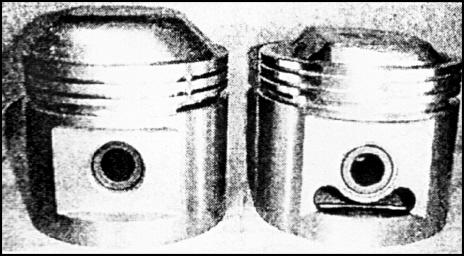

        Among my favorite books for part numbers and research are the Flat Rate/Part Number Books.  I have a two-volume set covering cars from the eras we restore:  1935-1954.  Book One covers 1935-1941 and Book Two covers 1940-1954.  These books show not only part numbers, but pictures, sizes and dimensions for such parts as brake linings, seals, bearings, wheel cylinders, etc.  They were invaluable during our mechanical restoration on our '53 Roadmaster 2 dr. Hardtop.  The engine was a real challenge in that it was a first-year engine and changes were made throughout the year.  I bought the 1952 and 1953 factory manuals (you need them both) to study before I bought the car, but found that Buicks Product Service Bulletinmanual was where I found all of the upgrades to make the car run at its best.  When the first '53 Roadmasters and Supers rolled off the assembly line, they were fitted with high dome pistons.  The '53's first issue pistons measured 2.578" This measures from the center of the piston pin to the top of the piston dome, compared with a measurement of 2.180" on the '54 pistonsa difference of .398"  Our '53 had its original 322 V8 engine, but when we took it apart, it had low-dome '54 pistons and heads, and curiously, the block had never been bored, leaving us to believe it was a late year change, or a dealer change.  But why did Buick change piston designs?  Again, back to the books.  We found a drive report by a legendary test driver/reporter of the day.  It showed him making a cross-country test run in a '53 Buick Super V8.  He gave high praise to the cars overall performance, but stated there was pinging and spark rap during acceleration. This was published in a well-read magazine of the time and could have led to the piston design change, but further reading in Buicks Product Service Bulletinmanual, they reported mild to moderate spark rap with a pinging sound during acceleration, and listed the first issue vacuum advance as a possible cause.  Buicks remedy was to issue a new vacuum advance with a 3/8long spacer between the vacuum advance unit spring and the spring retaining nut on the distributor.  This was done to lower the maximum spark advance.  It also stated that the spacer was to be used in vacuum advance #1116068 and not to be used under any circumstances in vacuum advance #1116083.  These kinds of details clearly matter on performance.  I recently saw a GM  Delco-Remy NOS vacuum advance on eBay listed for '53-56 Buicks all. Before I ordered it, I would want to know what the part number is and if it is a #1116083, to make sure the spacer had not been added.  Another problem that could have been prevented on our '53 was not to run the engine without an ignition (ballast) resistor.  The previous owner said he had just tuned the car and had gone through the entire ignition system.  When we were checking the car in, were were inside with the key on, when suddenly we saw smoke!  A fire had started at the coil, which is of course, right next to the glass bowl AC fuel filter at the carburetor.  Fortunately, we got the fire out before doing much damage, but not before melting some wiring, blowing up the coil and melting the distributor cap!  After a stiff Diet Coke, we checked our wiring diagram and saw that the ignition resistor had been left out of the ignition system.  We added one (theyre only about $10 for a NORS one) but the real cost was replacing everything else.  A review of the wiring schematic when we brought the car in would have prevented the entire problem.  I now have read all 180 pages in the Product Service Bulletin for '53 Buicks, and I can tell you, it is easier to read about the changes the factory made, than for me to work them out in the shop!

        I recently read a Packard story about a collector who bought a beautifully restored 1930's Packard Super 8.  Now, Packard straight 8's originally used slotted pistons and the factory manual clearly states, when building the engine face the slot toward the cam side.  Unfortunately, the engine builder didnt do that.  So, on the collectors first tour, the engine seized.  Two of the pistons melted, creating other massive damage to the engine.  When they tore down the engine, the problem was that the piston slots were turned away from the cama problem that could have been prevented by reading the engine section of the Packard Shop Manual.

        As time passes, many of the mechanics who worked on our cars back in the day are no longer living or not still working, leaving a major void in the knowledge needed to make these cars run at their best.  Ive heard people try to justify incorrect repairs by saying, Its supposed to drive that wayits just an old car! Or even, They ALL ran hot! I drove 40s and '50's cars when they were still being regularly seen on the roads, and '60's muscle cars when they were new.  They were all we had back then.  They were our daily drivers.  They were dependable and drove and handled really well, and we drove them everywhere with very few breakdowns.  Yes, there were a few cars that were troublesome, but not many.  Then and now, my '46 Packard Standard 8 is a pleasure to drive.  It has a light feel to the manual steering, and with its Lockheed braking system, it stops quickly with very little pedal pressure.

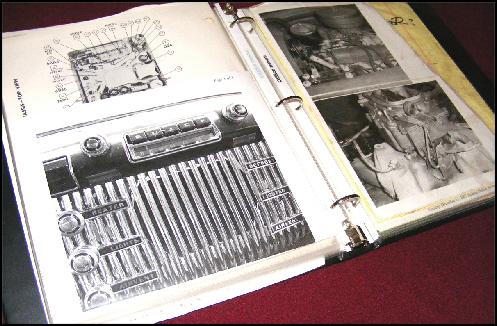

        Another car we set to factory specs is my '51 Chevy Fleetline 2 door.  It is one of the easiest, tightest cars I have ever driven.  It starts every time, all of the gauges are where they ought to be, its very easy to negotiate traffic in town or on the highway.  But we have spent time to get it right.  Books can help us make that happen, but the most important book in your collection is the book you make on your car!  I use a loose-leaf notebook with plastic sleeves.  Start with pictures taken at the beginning, middle and end of the restoration, with all notes, cross-over part numbers, contact names and phone numbers, and everything relevant to the build.  I also keep the type gasoline and stabilizer, brake fluid (synthetic or non-synthetic), oil (detergent or non-detergent), and current antifreeze test readings.  This helps to keep from making the same mistakes over and over, and if I sell the car later on, the new owner will know what parts were used and how to maintain the car.

        Lets keep these cars that we love so much on the road and running right.  See you next month, and keep em driving!
